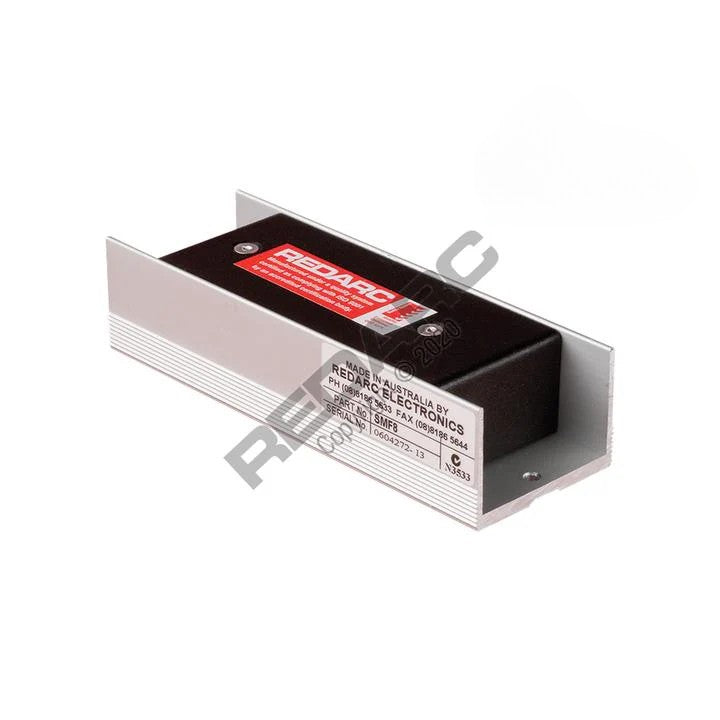

The compact SMF series supplies 13.6V (+/-5%) from a 24V negative ground automotive electrical system. It is suitable for lamps, small motors and electronic loads to a maximum of 2, 5 or 8 AMPS continuous rating depending on the unit. In addition to the ignition switched output, there is also a constant output which may be used (e.g. for radio memory.)
Features
- Compact in size and easy to install
- In built current limiting
- Memory wire
- Wide input voltage range
Specifications
| Input (Operating) Voltage | 16 - 33VDC |
| Output System Voltage | 13.6VDC |
| Output Current Rating (Cont.) | 8A |
| Input Fuse Rating | 10A |
| Warranty | 2 Years |
| Standby Current Draw | 19mA |
| Length (mm) | 125 |
| Width (mm) | 45 |
| Height (mm) | 30 |
| Weight (kg) | 0.27 |
If you're unable to find the information you seek, please don't hesitate to reach out to us. We're here to help!
